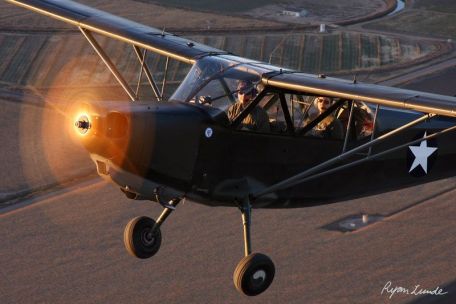

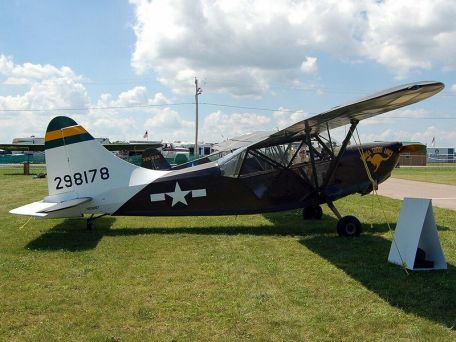

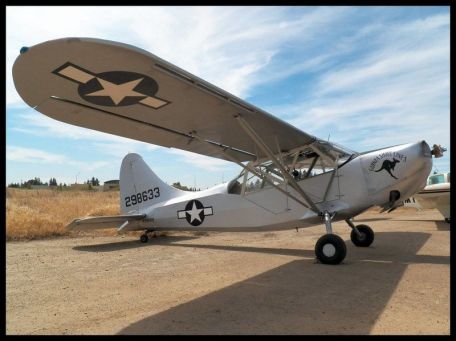

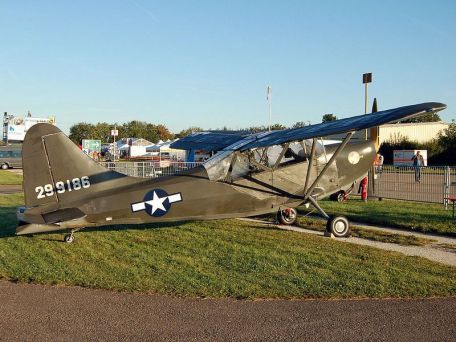

Stinson L-5 Sentinel

History

Light aircraft were common in 20th century warfare, and their loitering and short-field/rough capabilities enabled commanders to perform active air liaison, observation, reconnaissance, and other battlefield roles handled by similar personnel. The Stinson Aircraft Company is an aerospace company founded in 1920 that made its name by manufacturing this type of civil and military aircraft.

Their business didn't end until the 1950s, but before that the company was known for high-flying designs like the L-5 Sentinel.

Origins

Sentinel became a major American player during World War II (1939-1945) and produced 3,896 aircraft between 1942-1945. The series developed directly from the existing experimental Stinson "YO-54", another high-wing aircraft that appeared in 1939 and eventually entered service with the U.S.

Army (the aircraft was built in the early Stinson HW -75 garrisoned). However, the Sentinel was more successful in the air and was later used by all major branches of the US military as well as the Royal Air Force (RAF) and others.

The L-5 became a liaison military aircraft built for World War II use. Previously, the military had simply adopted and modified existing light civilian aircraft to take on this role. The U.S. Army Air Corps (USAAC) at the time evaluated the YO-54 in 1940, even before the U.S. committed itself to World War II operations, but the aircraft performed poorly. This forced Stinson to change the design from a side-by-side two-seater to a slimmer, lighter and more powerful two-seater.

Adapted to the rigors of military service, the aircraft resurfaced in the form of the V-76 model. By this time, Stinson was under the Vultee Aircraft brand, and his path was set.

Operational Services

With the United States now fully involved in World War II, the V-76 quickly entered service and was adopted in 1942 under the designation "O-62". It wasn't until 1943 that the official designation L-5 "Sentry" was finally designated - which coincided with the US Army's official creation of a "liaison category" for its aircraft.

The series proved its worth throughout the conflict, transporting VIPs, evacuating the wounded, scouting artillery, photographing key areas, and providing communications, food, medicine, and more that were critical to their role in warfare. Its high-wing design has excellent short-field capabilities, requiring rapid lift to lift the aircraft into the air for short periods of time. Additionally, the aircraft has the ability to "hover" for short periods of time, increasing latency, saving fuel, and providing a stable reconnaissance platform for a second-seat observer.

Her rugged personality quickly earned the series a solid reputation that continued well after the war ended in 1945.

During this period, the aircraft was used in all major and minor Allied conflict theaters. These include operations in the Pacific Rim region as well as in Europe and the Far East.

His availability in the postwar world also ensured his place in the Korean War (1950-1953), where his legacy continues to be written.

Variations

Both the U.S. Navy and the Naval Service use a variant named "OY-1". The later produced OY-2, which failed to serve in World War II, was an improvement over the original 12-volt installation based on a 24-volt electrical system line. The British acquired around 100 L-5 Stinsons in WWII, and this inventory includes both L-5 and L-5B models (variants listed below).

As usual, the British renamed these American planes, more simply called "Sentry I" and "Sentry II." Many L-5 aircraft served in the civilian industry in the postwar period and were widely exported to U.S. allies.

The line started with the O-62 with the Lycoming O-435-1 piston engine, 275 of which were built to standard. Variants then include the first L-5, with 1,538 examples, referred to as OY-1 by the USN and USMC services. The L-5A became a canceled version designed to carry a 200-horsepower Ranger engine and a 24-volt electrical system.

The L-5B entered production with the overall designation 729 - they differed by having an easily accessible rear fuselage door and also accommodated a floating landing gear for water landings. The L-5C is equipped with the K-20 reconnaissance camera, designed for photographic work.

The designated L-5D was skipped, resulting in the L-5E being produced in 750 examples with improved short-field/rough-field performance. The P-5G is an L-5E with a 24-volt electrical system, powered by a modified Lycoming O-435-11 engine. 115 of this brand were produced.

The newly formed USAF renamed their aircraft in 1962, making the L-5 Stinsons the "U-19" (A and B models were based on the L-5 and L-5G, respectively). The L-5/235 is the glider towed variant of the series, and the XL-5F is a one-off prototype powered by the Lycoming O-435-2 engine.

L-5 Stinson walks

When built, the L-5 had a crew of 2, sitting side by side. The aircraft has an overall length of 24 feet, a wingspan of 34 feet, and an altitude of nearly 8 feet. Curb weight is just 1,550 pounds, with a possible MTOW of 2,050 pounds. Power came from a 185-horsepower Lycoming O-435-1 engine driving a twin-blade propeller on the nose.

The design has a top speed of 163 mph and a range of 375 miles. Service is capped at 15,800 feet with a climb rate of 900 feet per minute.
