Dornier Do P.247/6

History of Dornier Do P. 247/6

The Dornier Do P. 247/6 project appeared in late 1944 as a short-lived design study "Pfeil" (Arrow ) Twin Engine Fighter - This heavy platform integrates its engines in an in-line arrangement, one at the front of the cockpit and the other at the rear. The result was one of the fastest production piston-powered fighters of the entire war. Based on this experience, the company's engineers attempted to create another effective fighter/fighter-bomber, this time focusing on a true "thrust" engine arrangement.

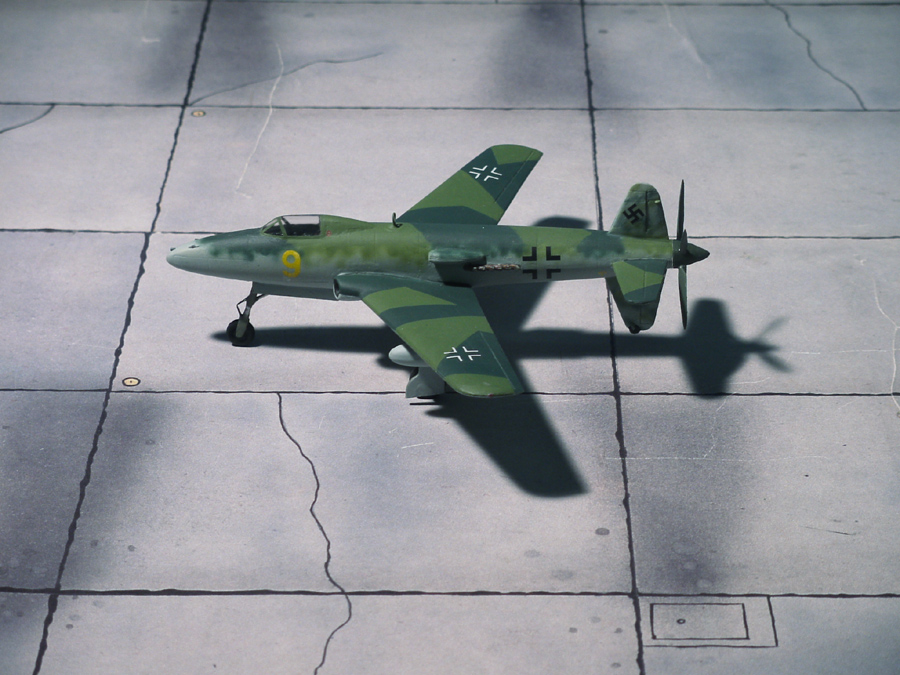

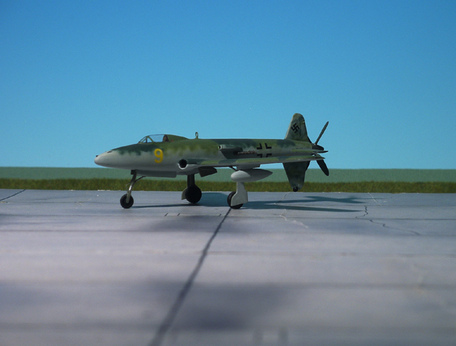

The engine is behind the pilot, the nose assembly has now been hollowed out to facilitate weapons mounting, and the pilot's position has been moved forward amidships to provide excellent cockpit/nose visibility.

This research resulted in a single-seat, single-engine design that has the potential to be mass-produced at high speeds - especially since the landing gear and tail will be carried over directly from the existing Do 335. The powerplant chosen was the proposed, experimental Junkers Jumo 213T liquid-cooled, turbocharged inverted-V engine operating at 2,000 hp to drive the four-bladed propeller unit (via an extended shaft) located at the extreme end of the fuselage. The engine itself is buried in the center of the rear of the body, with the cockpit forward.

The air intakes are located at the wing roots on the sides of the fuselage. The main plane sits low on the side of the fighter while gaining some backswing to accommodate higher flight speeds.

The tail is inherited directly from the Do 335, with a cruciform flat pattern of dorsal and pelvic fins and standard horizontal planes. A fairly modern retractable tricycle landing gear will be used for ground operation.

Given that high-speed fighters keep their engines in the tail, the nose assembly can be some kind of modular component of the design, as it can accommodate weapons, but also specialized equipment for special mission roles - an antenna system can be installed to allow the fighter to act as a night fighter Let.

With all this, engineers estimate their design top speed is 515-520 mph, which would make it faster than the twin-engine Do 335 (475 mph). Beyond that, no further performance data is known. Dimensions include a 39.3-foot wingspan.

Again, this Dornier-Jager proposal joins many other proposals put forward by industrial players in an attempt to meet the needs of the Luftwaffe during the war. The project never made it past the paper stage.

Specification

Principle

Years of Service

1945

Origins

Nazi Germany

Status

Cancel

Development ended.

Crew

1

Production

0

Manufacturer

Dornier Flugzeugwerke - Nazi Germany

Operator

Nazi Germany (removed)

scrolling

air-to-air combat, fighter

The general ability to actively attack other aircraft of similar form and function, usually using guns, missiles and/or airborne missiles.

Intercept

The ability to intercept incoming airborne threats with high performance, usually speed and rate of climb.

X-Plane (development, prototype, tech demo)

Aircraft designed for prototyping, technology demonstration, or research/data collection.

Notable Features

Armor

Armor assigned to protect the pilot/crew compartment and/or critical operating systems enhances survivability.

Fader support

The design features a rearward push rod arrangement in contrast to the more traditional pull rod arrangement.

wing sweep

The main plane or leading edge has retraction lines for improved high-speed performance and handling.

Sturdy aircraft frame

The inherent ability of the airframe to take significant damage.

High-speed performance

Can accelerate to higher speeds than the average aircraft at the time.

High performance

The ability to fly and operate at higher altitudes than the average aircraft of the day.

Rating Process

A manual process to allow the pilot and/or crew to exit in the event of an onboard emergency.

Depression in crew members

Support the pressurization required for crew survival at higher operating altitudes.

Closed crew room

There are partially or fully enclosed crew work areas.

Scalable

Has retractable/retractable landing gear to maintain aerodynamic efficiency.

Dimensions and Weight

Length

41.8 feet

(12.75m)

Width/span

39. 4 feet

(12.00m)

Height

15.6 feet

(4.75m)

Cured weight

14,771 lbs

(6,700 kg)

MTOW

20,283 lbs

(9,200 kg)

Wgt Difference

+5,512 lbs

(+2,500 kg)

Main aircraft structure

monoplane/low mount/sweep

Monoplane

Designed to use a single main wing main aircraft; this is the most popular arrangement of main aircraft.

install low

The main aircraft is mounted low on the side of the fuselage.

swipe back

The floor plan features a swept wing along the leading edge of the main aircraft, promoting higher operating speeds.

(For structure description refer to production variant Dornier P. 247/6)

Performance

Installed:

1 x Junkers Jumo 213T liquid-cooled turbocharged inverted V-piston engine, rated at 2,000 hp, driving a thrust-arranged four-bladed propeller unit.

Maximum speed

519 km/h

(836 km/h | 451 knots)

Cruising speed

388 km/h

(625 km/h | 337 knots)

Maximum speed difference

+131 km/h

(+211 km/h | 114 knots)

Maximum

36,745 feet

(11,200 m | 7 km)

Area

870 km

(1,400 km | 2,593 nautical miles)

rate of climb

1,800 ft/min

(549 m/min)

Range (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hypersonic: 7673-19180 | Reentry: > 19030

weapons

Assumptions: 1 x 30mm MK 103 cannon in the bow / 2 x 20mm MG 151. 20 automatic cannons in the bow. Optional: Externally Throwing Bombs (Conventional Ordnance) up to 1,000 lbs, 2 x 500 lbs.
