Boeing X-53 AAW (Active Aeroelastic Wing)

History of the Boeing X-53 AAW (Active Aeroelastic Wing)

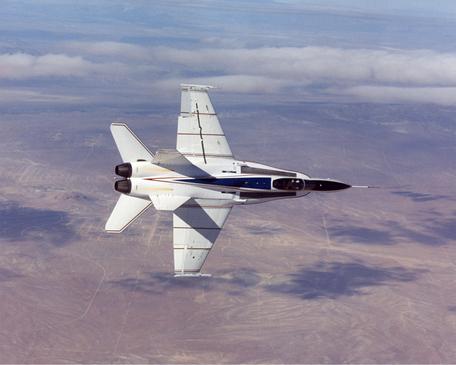

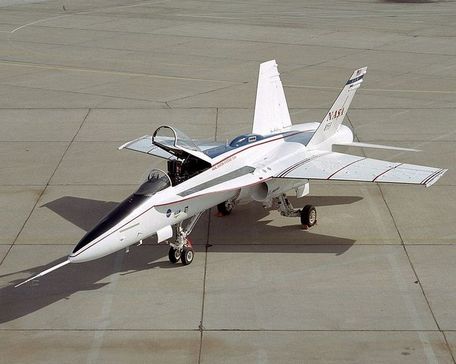

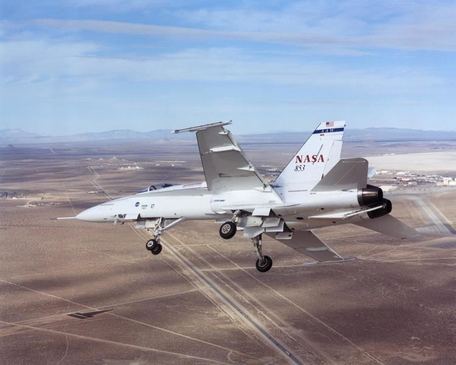

The X-53 Active Aeroelastic Wing (AAW) program was an American research initiative involving the collaboration of the Air Force Research Laboratory, Boeing Phantom Works, and NASA's Dryden Flight Research Center. The project aimed to develop and test AAW technology, which integrates aerodynamics, controls, and structure to control wing twist at high speeds. This technology utilized various control surfaces to minimize wing strain and aerodynamic drag while enhancing maneuverability. The X-53 program marked the first full-scale demonstration of AAW technology.

The development of AAW technology began in the mid-1980s with wind tunnel testing. The choice of a modified McDonnell Douglas F/A-18 Hornet as a testbed was ideal due to its high wing aspect ratio and adequate strength, which allowed for effective control of wing aeroelastic twist without additional stiffness modifications. AAW technology leverages the ability of control surfaces to counteract wing twist caused by other control surfaces, ultimately enhancing the aircraft's rolling performance and reducing the need for aileron deflection, resulting in improved overall performance.

To validate the AAW concept, NASA and the USAF jointly funded the development of a demonstrator based on the F/A-18. This modified aircraft successfully demonstrated the viability of AAW technology during roll maneuver testing in 2004-2005. Flight software was adapted to control the wing's twisting behavior, leading to the successful testing and proof of concept for AAW technology.

Specification

Basics

Years in Service: 2006

Origins: United States

Status: Retirement

Crew: 1

Production: 1

Manufacturers: Boeing/McDonald Douglas/Northrop Grumman/NASA-USA

X-Plane (development, prototype, tech demo): Aircraft designed for prototyping, technology demonstration, or research/data collection.

Notable Features

Multi-engine

Include two or more engines to improve survivability and/or performance.

Wing sweep

The main plane or leading edge has retraction lines for improved high-speed performance and handling.

High-speed performance

Can accelerate to higher speeds than the average aircraft at the time.

High performance

The ability to fly and operate at higher altitudes than the average aircraft of the day.

Extended range performance

Ability to travel long distances using on-board fuel supplies.

Super performance

The design covers the three key performance categories of speed, altitude and range.

Pilot/crew ejection system

Auxiliary procedures to allow pilot and/or crew ejection in the event of an air emergency.

Depression in crew members

Support the pressurization required for crew survival at higher operating altitudes.

Closed crew room

There are partially or fully enclosed crew work areas.

Scalable

Has retractable/retractable landing gear to maintain aerodynamic efficiency.

Dimensions and Weight

Length: 56.1 ft (17.10m)

Width/span: 38.4 feet (11.70m)

Height: 15.3 feet (4.65m)

MTOW: 39,022 lbs (17,700 kg)

Main aircraft structure

Monoplane

Designed to use a single main wing main aircraft; this is the most popular arrangement of main aircraft.

Shoulder

The main aircraft is mounted on the upper part of the fuselage, usually on an imaginary line that intersects the pilot's shoulders.

Swipe back

The floor plan features a swept wing along the leading edge of the main aircraft, promoting higher operating speeds.

Performance

Installed: 2 x General Electric F404-GE-400 afterburning turbofan engines developing 16,000 lb of thrust each.

Max Speed: 1,190 mph (1,915 kph | 1,034 kts)

Ceiling: 49,213 ft (15,000 m | 9 mi)

Range: 1,864 mi (3,000 km | 5,556 nm)

Rate-of-Climb: 50,000 ft/min (15,240 m/min)
