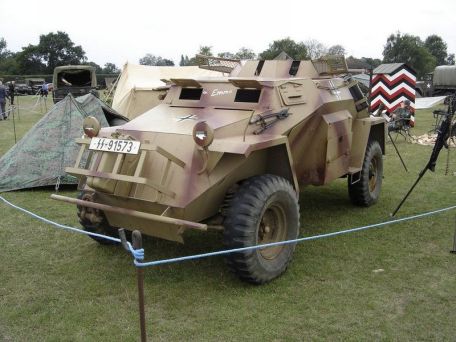

SdKfz 221 (Leichter Panzerspahwagen)

History of SdKfz 221 (Light Armored Vehicle)

During the German army build-up in the 1930s, the Army began to stockpile armored vehicles to suit its evolving mechanization program. However, these heavy-duty military service, based on commercial Adler and Daimler-Benz car chassis, which were largely unsuitable for the rigors of warfare, proved less than ideal.

A special armored vehicle chassis was then selected, thus establishing the successful SdKfz 221 series of armored vehicles that was widely used during World War II (1939-1945). The vehicle was also known as the Leichter Panzerspahwagen of the "Light Armored Reconnaissance Vehicle".

Eisenwerke Weserhutte AG built two pre-production vehicles, which differed from their near-production forms with a slightly raised roofline above the cab and in front of the machine gun position. Serial production included Maschinenfabrik Niedersachsen (Hannover) and F. Schichau, and was extended from 1935 to 1944.

Vehicles produced between 1935 and 1940 did not have a radio, so radios introduced from early 1941 had a radio as standard.

The final product became a 4.4 ton light four-wheel drive vehicle. Power is provided by a 75 hp Horch 801 Series liquid-cooled V8 petrol engine, giving the vehicle and its two occupants (commander/gunner and driver) a road speed of 50 mph and a range of up to 185 miles.

The armored hull is mounted on a suspended chassis, which together with the Horch engine provides the necessary power and performance for off-road use. The four large wheels are well spaced and anchored to the extreme corners of the design to provide the necessary balance and traction.

The armored superstructure has a good slope on all sides, providing basic ballistic protection for the crew. A viewing slot aids situational awareness, while an open-topped turret is mounted on top of the central fuselage.

The gun emplacements were manually traversed, providing the gunner with a basic ballistic shield. The gunner's position was also equipped with a folding plate that could be unfolded to prevent infantry shells from falling into the fighting compartment.

Early vehicle models were equipped with an MG13 series machine gun, but as the MG34 began to be widely adopted and standardized, it was used as the primary weapon on most SdKfz 221 series cars, armed with approximately 1,000 rounds of 7.92mm ammunition. In early 1942, many vehicles were upgraded to carry a 20mm anti-tank gun (sPzB 41 series) in response to the growing threat on the battlefield.

While this greatly increases firepower, the vehicle itself is still only protected by its base armor, which protects the occupants from pistols up to 7.92mm caliber. Armor thickness varies from 5mm to 14.5mm.

The production of the SdKfz-Wagen Series 221 was approximately 339 units. The related SdKfz 222 introduced a 20mm automatic cannon from the KwK-30 series as well as a 7.92mm machine gun and an additional crew member as a dedicated gunner. A total of 990 units of the series were produced. The SdKfz 223 continues the lineage that started with the SdKfz 221-Wagen, these can be identified by its collapsible antenna frame and machine-gun-only armament (again with a crew of three).

Production of this variant includes approximately 567 cars.

The SfKfz 260 and SdKfz 261 vehicles were also related, and long-range radios and foldable antenna frames were developed. The two brands produced a total of 483 vehicles.

Specification for SdKfz 221 (Light Armored Vehicle)

Basic

Roles

Dimensions

Performance

Performance

for everyone else in our database)

Armor

1,000 x 7.92mm ammo

Changes
