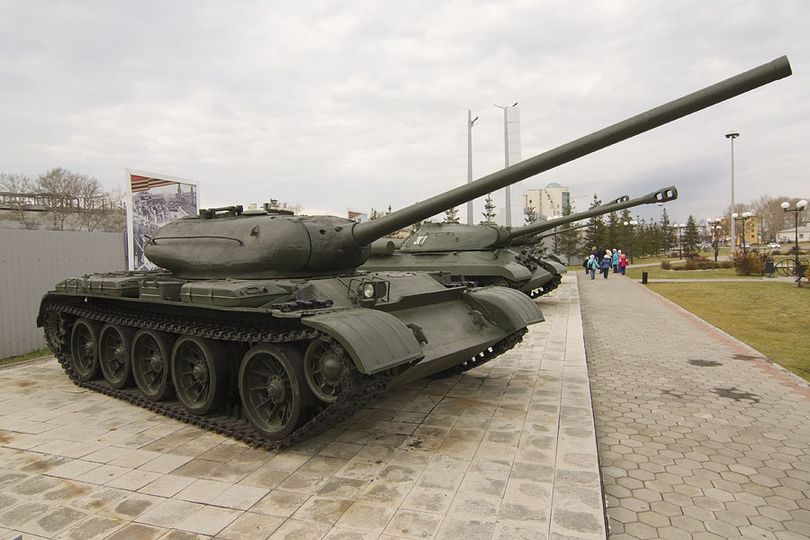

T-54

History

The Soviet T-54 series of main battle tanks emerged in search of a viable alternative to the victorious T-34 medium tanks of World War II. The T-34 itself was a proven asset in the conflict, a nasty surprise for both German tanker crews and anti-tank forces. The T-34 was a revered but primitive battlefield machine that skillfully combined speed, firepower and armor protection that ultimately kept German troops on the defensive during the war. More than 84,000 examples of the T-34 were produced from 1940 to 1958, serving many countries during the Cold War (some still use the type today).

To this end, Soviet engineers tried several moves to replace the practical but efficient T-34 design with a more modern, refined, and reliable model. One such attempt was the 85mm-armed T-44, which, although it entered service in 1944, did not see any major combat action during World War II and was also plagued by mechanical unreliability, limiting overall production to 1,800 or so.

The Soviet Army instead preferred the 100mm main gun, which, with the end of the war, meant the long end of the T-44. Nonetheless, the parallel design proved to be a more reliable alternative, with this version fitted with the required 100mm main gun. The tank was named T-54.

Design of the new tank began in late 1944, and prototypes were built in February 1945. Subsequent trials proved promising, and the design was subsequently formally accepted into service by the Soviet Army. The European war ended in May 1945, while the Russo-Japanese War lasted only a brief period from August to early September, and the Soviets were victorious.

Work continues on the T-54 as a possible replacement for the fabled T-34 series.

The T-54 was built around the 100mm main gun of the D-10 series, which immediately made it one of the most powerful frontline battle tanks compared to Western developments at the time. The T-54 improved the armor protection of the T-34 and was equipped with a new drivetrain and engine. The Red Army's wartime experience in armored warfare was naturally incorporated into the design. After several design revisions and several technical "corrections", the T-54 appeared on the 1946 evaluation sheet under the designation "T-54-1".

As the evaluation of the T-54 system was still in progress, the Soviet authorities officially ordered the tank to go into quantitative series production in 1947. The T-54 entered service with the Red Army in 1949.

From the outside, the T-54 is clearly a "Soviet" tank design with a rounded cast steel turret mounted with a 100mm main gun. The appearance is not different from that of the series of wartime "Joseph Stalin" heavy tanks used against the Germans.

The 100mm main barrel was relatively featureless and was not equipped with a muzzle brake. The gun aimed (with good penetration) at targets about 1,000 yards away - its only structural flaw was limited downward movement, a known flaw that limited the use of a "hull down" firing strategy. It can carry up to 34 rounds of 100mm ammunition, which is more than enough for standard-sized HE and armor-piercing rounds. Ammunition is stored in the turret and throughout the hull. Anti-aircraft is provided by heavy 12.7mm DShK anti-aircraft machine guns located in the loader hatch.

Further defense comes from a 7.62mm SG coaxial machine gun mounted next to the main gun armament (operated by the gunner) next to the turret. A rather novel design feature is the machine gun mounted on the fenders for additional anti-infantry defense.

Structurally, the track is flanked by five main wheels, with the front pair well ahead of the rear. The drive sprocket is mounted on the rear and the chain idler is mounted on the front. Track return rollers are not implemented in track design.

The upper structure of the fuselage has a relatively low profile, while the forward tilting plate is well sloped and fits nicely on top of the fuselage. The crew quarter consists of the driver, tank commander, driver, and main gun loader (the bow-mounted gunner/radio operator common to most WW2 tanks has fallen out of favor by this time). The driver maintains a forward left position in the front hull, while the commander, gunner and loader are in the turret, the former group on the left and the latter group on the right. The engine is mounted aft of the fuselage and consists of a 520-horsepower V-54 Series 12-cylinder water-cooled diesel engine.

The hull is fully welded and the overall weight has been reduced by almost 40 tonnes to 39,700kg.

A very basic tank design, any WWII student can appreciate the design lines of the T-54. All in all, the T-54 offers more direct fire and field armor than its predecessor, which the Red Army could hope for - especially as they try to showcase all the armor development happening in the West on a daily basis.

Off-road capability is rated fairly well, and the power-to-weight ratio is noteworthy.

Released in 1946, the T-54-1 was noted for its chiseled curved turret layout and wide turret. The D-10T's main gun was unstable, so it was nearly impossible to "fire on the move" with precision.

This version is also loaded with 7.62mm SG-43 series machine guns on the fenders to improve defense against infantry, but its tactical value is questionable. The production of this model is limited at best, mainly for evaluation purposes rather than service.

The few completed projects showed some serious quality control issues that had a serious impact on the overall project. Production of the T-54-1 continued until 1948.

In 1949, the T-54-2 was introduced with an improved turret assembly with flat side panels, rear overhang and domed roof. For better ground displacement, the track has been widened and the transmission system has been improved.

The fender mounted 7.62mm machine gun has been removed and replaced with a more traditional bow mount position managed by the driver. This form of production continued until 1952.

The modernized version eventually adds a ZET-1 series vehicle protection kit to improve battlefield survivability, which depends on the net around the main gun.

In 1952, the T-54-3 entered service with an oval curved turret configuration. The gunner's sights have been upgraded to the TSh-2-22 series system. Engine-based smoke generators were introduced, allowing the T-54 to generate its own smoke and mask its maneuvers to some extent.

The system relies solely on injecting raw diesel into the engine, which achieves the desired effect. Production continued until 1954, while the Polish factory produced local varieties from 1956 to 1964.

The T-54A appeared in 1955 and eventually added a main gun stabilizer in the vertical plane. This renamed the original D-10T tank gun to the D-10TG. Snorkels are now standard, giving the T-54 some amphibious capabilities that previous versions lacked. Other additions include infrared spotlights, new telescopic sights, new radios, improved engine air filters, automatic fire extinguishers and an infrared periscope in the driver's seat.

The barrel was balanced to deal with recoil, but this later gave way to a bore diffuser. Additional fuel tanks were also used to increase range. The T-54A was in production until 1957. Poland manufactured this type from 1956 to 1964.

Likewise, localized production in the Czech Republic ran from 1957 to 1966. China produced this version of the T-54 as the Type 59, although it turned out to be inferior to the original in every way.

The T-54B followed in 1957, a key to this development was the inclusion of a two-axis gun stabilization system that improved firing accuracy while moving. The gun was renamed D-10T2S.

In 1959, the series gained true infrared night vision combat capability, enabling the T-54 to operate in both day and night environments. This version was given the NATO designation T-54(M) to denote these changes. Production of the T-54B continued until 1958.

In the mid-1950s, an overhaul of the T-54 production line produced a similar-looking T-55 main battle tank. The tank is equipped with new engines, thicker armor protection and basic nuclear, biological and chemical (NBC) protection. Production of the T-55 began in January 1958.

The arrival of the T-55 gave rise to the designation T-54M in the mid-1960s, denoting an upgrade of the T-54 model produced to the new T-55 standard. Further modernization efforts in the 1960s led to the designation of the T-54AM, which introduced more interior space for projectiles and new radio equipment. The engine is a new version of the same system used in the V-55 family. Another modernization of the series was triggered in 1977 with the addition of an OPVT snorkel and a laser rangefinder to the KTD-1 series.

Other T-54 versions were used as test beds for various developed weapons.

The T-54 was also converted into an assault tank with additional communications equipment instead of five 100mm projectiles. Commando tanks come in four different variants, known as the T-54K, T-54AK, T-54BK and T-54MK series, each with their own sub-variants. The T-54K includes the T-54K1 and T-54K2. The T-54AK consists of the T-54AK1 and the T-54AK2.

T-54BK includes T-54BK1 and T-54BK2. The T-54MK consists of the T-54MK1 and the T-54MK2. The K1 and K2 names simply identify the additional radio equipment in the K1 model and the telescopic mast used in the K2 model.

Like other high-capacity MBTs, the T-54 series was produced beyond the required combat and command form. These include Armored Rescue Vehicles (ARVs), AVLB bridge machines and IMR combat engineering vehicles. A fire-breathing tank was also found, along with a minesweeper.

To this day, T-54s are still deployed in large numbers around the world and have seen significant combat operations in a variety of environments. Therefore, most customers were countries like the Soviet Union and China, which later produced an approximate copy of the T-54, the aforementioned "Type 59". While it was an excellent tank system for its time, one has to consider the machine's WWII origins on today's tech-starved battlefield.

Despite the famous T-34's pedigree, the T-54 was far inferior to its contemporaries in the West and elsewhere. Regardless, the T-54 will likely be on the field for some time to come - thanks in large part to the staggering production numbers associated with the series.

Various modernization programs from various owners over the years, including the addition of external laser rangefinders and improved searchlights and sights, have certainly helped the T-54 remain a viable battlefield solution.

T-54 operators (outside USSR, Poland and Czechoslovakia/Czech Republic) include Afghanistan, Albania, Algeria, Angola, Armenia, Bangladesh, Bulgaria, Cambodia, Republic of Congo, East Germany, Egypt, Ethiopia, Finland , Georgia, Guinea, Hezbollah, Hungary, India, Iran, Iraq, Kurdistan, Israel, Laos, Lebanon, Libya, Mali, Mongolia, Morocco, Mozambique, Namibia, North Korea, North Vietnam/Vietnam, North Yemen, Pakistan, Peru, Poland, Rwanda, Somalia, South Yemen, Sudan, Syria, Tanzania, Togo, Uganda, Ukraine, USA (some examples of OPFOR - training only), Uruguay, Zambia and Zimbabwe.

The Israeli army faced the T-54 in several conflicts, including the Six-Day War in 1967 and the Yom Kippur War in 1973. As a result, thousands of examples were captured and eventually served with the Israeli army against their former operators. These examples were modified with a 105mm main gun, a GM engine, and an Israeli Fire Control System (FCS). Many retired in the 1980s - some were converted into "Achzarit" infantry fighting vehicles, others were sold to interested parties.

Some converted T-54s are believed to still be in Israeli possession.

It is believed that more than 50,000 T-54 tanks were produced at home and abroad. Like the production of the similar T-55, the T-54/55 series of main battle tanks are the most produced main battle tanks in history, with a total production of between 85,000 and 100,000 units (various sources). As such, the T-54/55 can also claim to be one of the most experienced main battle tanks in the history of mechanized warfare - the system is in service in Africa, the Balkans, throughout the Middle East and Asia.

Soviet production of the T-54 continued until 1981 due to the shortcomings of the new T-62, which never lived up to the expectations of discerning buyers. Poland produced the T-54 until 1979, while Czechoslovakia managed production until 1981.

Specification
