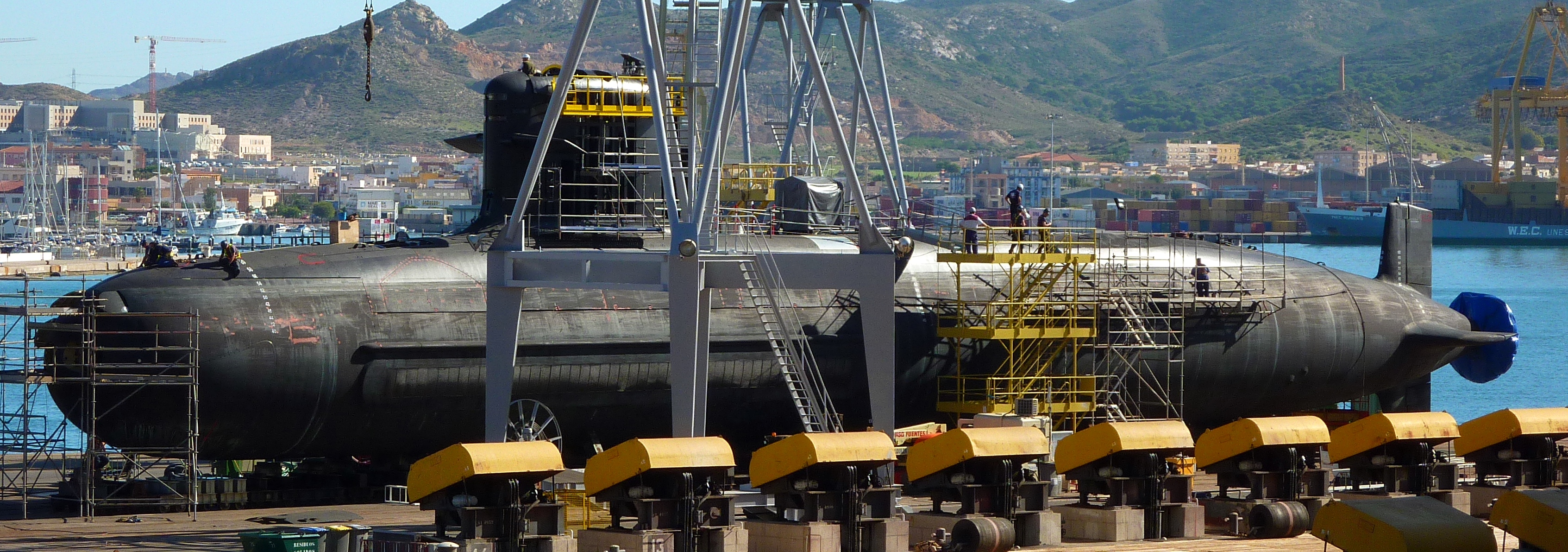

KD Tun Abdul Razak

The story of KD Tun Abdul Razak

In 2002, Malaysia ordered two Scorpene class ships worth 1. 4 billion (approximately RM4.78 billion). Two vessels, Tunku Abdul Rahman and Tun Abdul Razak, were commissioned by the Royal Malaysian Navy in 2009.

The Scorpene class submarines are available in four subtypes: the conventional CM-2000 diesel-electric version, the AM-2000 Air Independent Propulsion (AIP) variant, the scaled-down CA-2000 coastal submarine and the scaled-up Brazilian Navy's S-BR, There is no AIP.

Specification

BASIC

Year of Service

2009

Origins

Malaysia

supplement

31

staff

Class information

Class

scorpionfish

Class Size

19

ships

Class

Carrera (SS-22); O'Higgins (SS-23); KD Tunku Abdul Rahman (Malaysia); KD Tun Abdul Razak (Malaysia); Unnamed Indian Navy (S50); Unnamed Indian Navy (S51); Unnamed Indian Navy (S52); Unnamed Indian Navy (S53); Unnamed Indian Navy (S54); Unnamed Indian Navy (S55); Riyasullo (S40) ( Brazil); Humaita (S41) (Brazil); Tonelero (S42) (Brazil); Angostura (S43) (Brazil)

Carrier

Malaysia

Roles

Underwater Attack

Travel below the surface to find, track and/or attack or explore areas.

Sea Patrol

Active patrolling of critical waterways and sea areas; also serves as a local deterrent against air and maritime threats.

Fleet Support

Provide support (fire or materiel) to major surface fleets in blue water environments.

Dimensions and Weight

Length

218. 0 feet

66.45m

Ray

20. 0 feet

6.10m

Draft

19. 0 feet

5.79m

Shift

1,670 t

Power and Performance

Installed Power:

Diesel-electric drive; battery service for underwater travel; 1 * axle

Surface Velocity

20.0 nodes

(23. 0 km/h)

Area

5,648nm

(6,500 miles | 10,461 kilometers)

Weapons

6 x Alenia Whithead Black Shark torpedoes in the nose tube launcher. Aerospatiale SM39 Flying Fish anti-ship surface-to-surface missile.

Aircraft

None.
