Heckler & Koch HK G3

Heckler & Koch HK G3 History

At the end of World War II, German engineers were working to perfect a new type of service rifle known as the "Assault Rifle". The assault rifle immediately made the bolt-action rifle a standard weapon in every modern army.

The new weapon allows the use of rifle-caliber cartridges in a more compact casing, capable of repeated automatic firing at targets at short and medium distances - the distances most commonly encountered by infantrymen. The most famous early example of this weapon is the German war rifle StG 44 (Assault Rifle 44 or "Assault Rifle") - often referred to as the "Father of the Assault Rifle" - leading to a more complex and simpler prototype - the StG 45 Unfortunately for the Germans, the StG existed only as a prototype until the end of the war in May 1945 45, perhaps only 30 were produced.

The StG 45 used the 7.92x33mm Kurz ("short") intermediate cartridge, although, perhaps most importantly, it influenced the use of the "roller delayed recoil" firing principle. This process mainly involves two locking rollers located on either side of the firing pin near the bottom of the cartridge, which engage the sides of the receiver during firing and slow down the movement of the bolt head - the barrel remains in place. This principle was adopted as a low-cost alternative to the proposed pneumatic roller locking breech system originally used for the StG 45.

During the war, the system was run by the government-sponsored Centro de Estudios Tecnicos de Materiales Especiales ("Technical Special Materials Studio"), also known as CETME. Engineers managed to produce a more refined and reliable roller-delayed recoil system for the 7.92mm cartridge, which was sold to the West German Army for testing as a new standard service rifle. The West German Army favored the idea of ??CETME, but preferred the gun in the standard 7.62x51mm NATO cartridge.

CETME engineers continued their design work, culminating in the production of the CETME "Type 58" Assault Rifle/Battle Rifle, which fired a 7.62mm reduced-charge cartridge (becoming the 7.62x51mm CETME).

After evaluating competing systems, the West German Army selected the CETME design as their new standard assault rifle. The weapon was produced under license and Heckler & Koch modified the CETME system to accept the full power 7.62x51mm NATO cartridge. The resulting design became the HK G3 series ("Rifle 3") range of automatic rifles/battle rifles, using sheet metal stampings interspersed with plastic furniture in their construction. The internal firing mechanism is a more sophisticated form of the original StG 45 roller delayed recoil system, and the overall design of the rifle is budget friendly.

The G3 has a lot in common with the Spanish CETME, but is in every way a unique evolution of the Stg 45 that preceded it - a fairly basic, basic, unremarkable rifle in that it uses a full-power rifle cartridge. Introduced in 1959, the HK G3 became the standard service rifle of the West German Army.

However, some early HK G3s are known to have "CETME" stamped on their receivers until at least 1961.

Essentially, the HK G3 is an excellent automatic rifle, but the lines of the automatic rifle it develops will be the standard of attention in Hong Kong for decades to come. It looks perfectly fit for purpose, but it's a fully functional final product worthy of the rigors of the modern battlefield. The design combines a sturdy fixed stock and angled pistol grip near the thumb-operated fire selector (safe, single-shot semi-automatic and fully automatic fire modes).

The curved trigger assembly is held in a hardened trigger guard. In front of the trigger is the magazine well, which holds a detachable 20-round box magazine. The magazine distribution is located behind the magazine well. The receiver mainly contains long running front and rear horizontal lines. The front consists of a plastic handguard that wraps around a fairly long barrel that sticks out a bit and is covered with a slotted flash suppressor.

The mirror unit (recognizable "drum" diopter sight) is located on the receiver, and the front sight is added to the very end of the front end. Overall, the G3 is a very clean weapon design without any frills.

The "G3" designation was used to simply identify the first production models, known for their wooden shoulder rests and folding rear sights. The G3 largely followed the form and function of the previous Spanish B-type CETME rifle brand, which was then brought into service by the HK GA1 with its retractable stock.

The HK G3A2 marking is just a G3 service rifle with a standardized rotary sight mount.

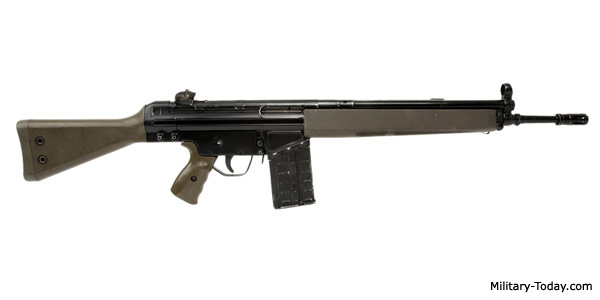

The HK G3A3 became the final production form of the G3 series, and its most unequivocal signature. The G3A3 uses the G3A2 model rotary sight unit with an improved rear sight and fixed plastic shoulder rest. In addition, this version of the flash hider has also been updated to a "tine" type.

A bipod is optional to stabilize continuous fire. This version weighs 9 pounds 11 ounces and measures 40 inches overall and 17.7 inches per barrel. The cyclic rate of fire is 550 rounds per minute and the muzzle velocity is 2,625 feet per second.

The G3A3A1 includes a brass port deflector and an ambidextrous fire selector.

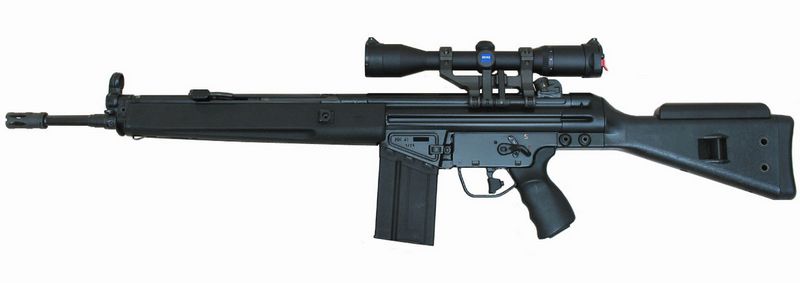

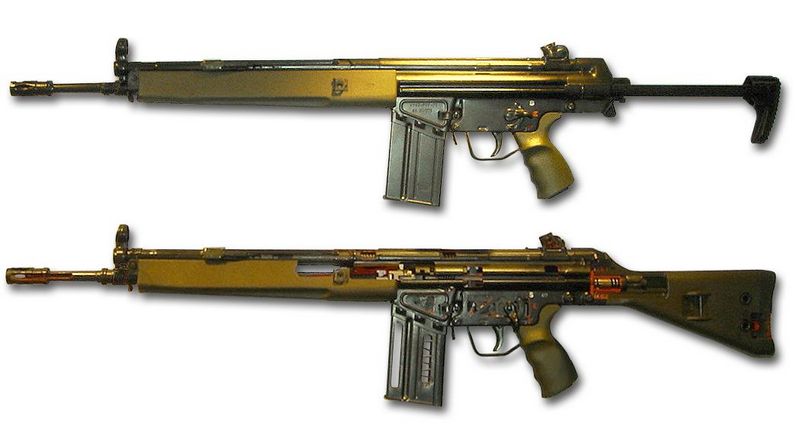

The HK G3A3 series itself gave rise to several notable sub-variants associated with the G3 variety. These included the G3A3ZF ("Telescope"), which introduced receiver support for the optics (Hensoldt 4x24 Power Scope). This basically allows the G3 to be used as a long-range sniper weapon, firing full-power cartridges, and lays the foundation for a more specialized sniper platform. The G3A4 resulted in the use of a collapsible stock - which significantly reduces the overall length of the weapon - as well as telescopic sight support.

The similar G3A4A1 combines brass port deflectors with a nimble fire selector control. The G3KA4 is a compact carbine variant with a collapsible stock. However, the G3KA4A1 is similar to the brass port deflector and ambidextrous fire selector.

G3A5 designates the G3A3 model made in Denmark (eg Gv M/66).

The G3SG/1 is a more precise version of the G3, intended for use by targeted snipers in the West German army. This variant uses a standard telescopic sight, a foldable bipod, cheeks on the shoulder rest, and a special trigger assembly. The modified rifle scope G3 is MSG3. The HK79 series 40mm grenade launcher is mounted under the front of the G3TGS.

The Scoped G3 eventually led to the refined PSG-1 line of sniper rifles (for law enforcement) with a more powerful scope, standard ergonomic comfort, a free-floating barrel, and only available in semi-automatic fire. The high cost of the PSG-1 rifle led to the more economical (and militarized) MSG-90.

The G3A3 licensed in Luxembourg, Iran and Turkey are designated HSG1, G3A6 and G3A7 respectively. Iran developed a "bullpup" version of the G3 as the DIO G3, with the integrated working parts and magazine now located behind the trigger group. The foldable stock version (G3A4) is also made in Turkey, albeit a G3A7A1. Denmark leased the G3 rifle as the Gv M/75.

The locally produced Norwegian version of the G3A5 is the AG-3. The AG-3F1 is the foldable stock form, while the AG-3F2 is the improved form. Sweden produced the G3A3 as the Ak 4. Applicable versions are Ak 4OR and Ak 4B. Pakistan locally produces G3A4 as G3P4.

The G3 later became the basis for an entire line of weapons related to the original G3 line. The HK41 is the police/civilian version with only semi-automatic fire. Likewise, HK produced the HK91, a semi-automatic shooter for civilian use. HK911 succeeds HK91 in compliance with US gun restrictions.

Likewise, the SR9 comes in the form of the sporty SR9(T) and SR9(TC). As these types are imported into the lucrative U.S. arms market, other types not designated by Hong Kong have emerged - these types are used by various importing companies.

The scope of HK G3 cannot be underestimated, as it is in Argentina, Angola, Bahrain, Bangladesh, Bolivia, Brunei, Burkina Faso, Myanmar, Burundi, Chad, Chile, Colombia, Cote dIvoire, Croatia, Cyprus, Available in Djibouti, Dominican Republic, El Salvador, Estonia, Ethiopia, Gabon, Ghana, Greece, Guyana, Haiti, Iceland, Indonesia, Iraq, Jordan, Kenya, Latvia, Lebanon, Libya, Lithuania, Malawi, Malaysia, Mauritania, Mexico , Morocco, Myanmar, Niger, Nigeria, Norway, Paraguay, Peru, Philippines, Portugal, Qatar, Rhodesia, Rwanda, Saudi Arabia, Senegal, Somalia, South Africa, Sudan, Tanzania, Togo, Uganda, United Arab Emirates, Zaza IL, Zambia and Zimbabwe to the above countries. Since its inception in 1959, the G3 is still in service today and has seen numerous combat operations in various local and large-scale wars.

It has been the standard NATO assault rifle for decades.

Production is carried out by Heckler & Koch, Rheinmetall, SEDENA, DIO, FBP, Carl Gustafs, Husqvarna, Hellenic Arms Industry, Kongsberg Vapenfabrikk, MAS, Military Industry Corporation, MKEK, Paksitan Ordnance Factory and Royal Ordnance PLC. This global presence was due to the fact that the G3 was actually more economical than other competing automatic rifles of the time, namely the Belgian FN FAL and the American M14.

For a unified German army, the G3 was withdrawn from front-line use in 1997 to make way for the HK G36 family series.
