Winchester Model 1876

History of the 1876 Winchester Model

With the advent of increasingly powerful centerfire cartridges in the front of firearms, it was only natural that Winchester Repeat Firearms of New Haven, CT developed a new design based on proven Winchester characteristics rifle. So far, the Winchester group has been working on firearms to compete with the established edge-fire and center-fire cartridge types.

The Winchester Model 1876 thus became their "full power" answer - also known as the "Centennial Model" because it was released on the 100th anniversary of the American birth. It is believed that a total of 63,872 Model 1876s were produced from 1876 to 1898.

Model 1876 looks like part of a Winchester lever-action gun in every detail - more similar in appearance to the previous Model 1873 - full square case design, integrated lever under grip System, full inventory and an integrated magazine tube under the barrel and wooden furniture to keep things topped up. Although similar in shape to the Type 1873, the Type 1876 actually originated as a Winchester design in 1868 and was never produced for the open market. The main difference between the Model 1876 and previous Winchester designs is its enlarged receiver section, specially designed to accommodate the full power use of the aforementioned cartridges. Therefore, the receiver is also more powerful and can handle the greater power of these cartridges. The loading door is still on the bottom right of the receiver, and the ejection port is on top.

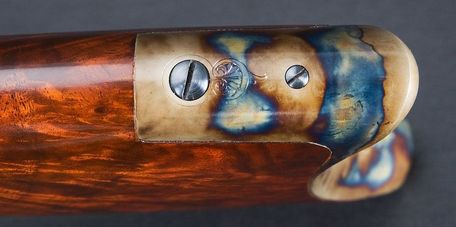

Of course, the hammer is placed on the back of the receiver and the trigger is below. The forearm is rounded and used for two-handed shooting to provide assistance (when aiming) and to protect the operator from hot barrels (which previous Henry rifles lacked). Front fixed post and rear stepped rear sight aid aiming. The shoulder rest is covered by a brass cap.

The tubular magazine holds 15 rounds of ammunition. The barrel can be octagonal or round, depending on the model type and overall metal construction, and the decorative work is done in nickel, silver and gold finishes.

Like other Winchester rifles, the Model 1876 comes in two different forms beyond the basic rifle - a shortened carbine model suitable for horseback riding, and a longer, longer-range "musket" model . To accommodate the receiver change, each version was fitted with a longer barrel - 22 inches for the carbine version and 32 inches for the musket version (those with round barrels). Standard Model 1876 rifle barrels range in length from 26 to 28 inches, but vary in length from 23 to 36 inches.

The first production models of the Type 1876 were designed to fire the .45-75 WCF cartridge, but other variants of the series eventually allowed for the firing of the .40-60, .45-60 and .50-95 time express cartridges.

In practice, the 1876 model has proven itself to be a Winchester product. It is a powerful firearm with strong interception capabilities, and its reliability on the battlefield has been praised by frontier personnel.

Other notable personalities using the Model 1876 include the Texas Rangers, Canadian Mounted Police ("NWMP" stamped on inventory), Chiricahua-Apache war chief Geronimo and avid hunter Teddy Roosevelt.

Specification

Roles

Dimensions

Performance

Changes
