Harpers Ferry Model 1803

History

While the Harpers Ferry Model 1795 was the first smoothbore rifle in the United States to be mass produced by the National Armory, the Harpers Ferry Model 1803 became the first standardized "rifle" in the United States Design nations gain the same prestige. The Model 1803 was adopted by the U.S.

Army and Marine Corps, who appreciated the type's accuracy at range after decades of successful rifled rifle experience. Compared to smoothbore rifles, the "rifling" used in the barrel of the rifle distorts the fired projectile, which increases the stability of the projectile at range, which significantly reduces accuracy.

Otherwise, the Model 1803 was in keeping with the guns of the day, featuring a long wooden frame, flintlock breech, and muzzle-based loading. Use a piece of flint to ignite the gunpowder (by creating a spark) while loading the gun through the muzzle end (by the gunpowder and projectile), using the push rod provided to knock the contents back into place.

The pushrod is fed into a casing that runs under the barrel when not in use. Reloading was tedious, so it required the use of infantry lines to hit the enemy with full shock - but that was the call of every army at the time.

The Harpers Ferry Type 1803 is also (more formally) considered the "American Type 1803".

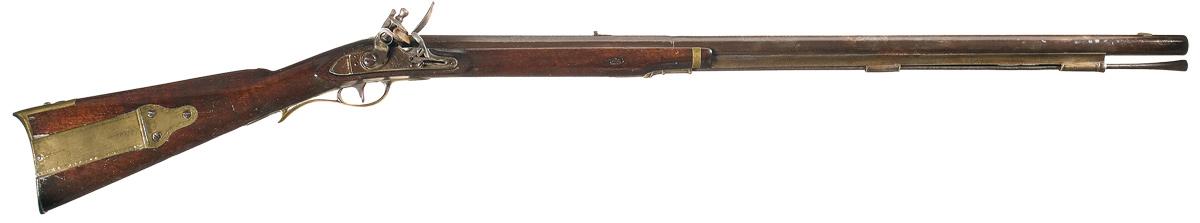

From the appearance, the Model 1803 is a typical long gun of the time, mostly wooden, with a metal lock plate on the right side of the gun body, which is used to fix the main metal parts. The trigger is hooked under the action as usual, including a brass trigger assembly and ring guard. The hilt is an integral part of the design and is shaped into the shoulder. A patch box is embedded in the shaft. The front is an octagonal barrel inlaid in woodwork.

The caliber of the projectile is . 54, while the official cartridge is. 525. Depending on the production batch, the barrel length is between 33 and 36 inches (there are two main barrels). So the overall length is 49 inches or 52 inches, depending on the fit of the barrel.

Interestingly, there is no standardized support for bayonets, as development has focused more on providing a more compact and lighter long gun for the growing number of "shooters" who are now replacing the ancient rifles in service.

Production of the Type 1803 ran from 1803 to 1819, during which time a total of approximately 19,726 units were produced. The legendary facility at Harper's Ferry Armory was built at the turn of the century, after America's first true armoury, the Springfield Armory. Harpers Ferry engineers directed the design, development and production of the new rifles, and the initial order of 2,000 rifles quickly grew to 4,000, with the final "first batch" delivered in 1807 (officially 4,023).

The Model 1803 was driven in part by Secretary of War Henry Dearborn, who advocated the use of shorter guns and rifles in combat, citing shorter lengths for compactness, rifle accuracy and reduced barrel "knots". dirt".

The Model 1803 became a popular long gun and a second batch was ordered in 1814. At this point, we thought it would be appropriate to slightly increase the length of the original barrel from 33" to 36" to bring its full length to 52" to improve accuracy. Other minor revisions have also been introduced.

The national inventory has increased in total 15,703 new rifles, the model was officially discontinued in 1819.

The Model 1803 was in service during the forgotten War of 1812 between Great Britain and the United States. The war lasted from June 1812 to February 1815, with little benefit to the territories of either side. This weapon has stood the test of time as it was used again in warfare, this time in the Mexican-American War from April 25, 1846 to February 2, 1848, helping to settle the state of Texas. territorial issues.

Inventories were in play until the American Civil War (1861-1865), when nearly all guns were in service due to shortages on both sides. With two official production runs and an early pre-production range, three different "types" of the Type 1803 are circulating.

Sources disagree as to whether they actually appeared on the famous Lewis and Clark expedition (1804-1806).

Specification

Basics

Year of Service

1803

Origins

United States

Categories

Flintlock Muzzleloader Rifle

Manufacturer

Harpers Ferry Armory - USA

Carrier

United States

Dimensions and Weight

Overall Length

1,244 mm

48.98 inches

Barrel length

838mm

32.99 inches

Cured weight

9.00 lbs

4.08 kg

Attractions

Iron.

Action

flintlock; muzzle shop; single shot

Flintlock

A primer on operating systems that were popular about 200 years ago. The action involves a piece of flint and a drop weight to create the spark/ignition, igniting the propellant to propel the ammunition from the chamber to the barrel and through the muzzle.

Cartridges and Paper Feeds

Caliber*

. 54 balls

Circle/Feed

Single Shot

Performance

Rate of fire

1

Number of revolutions

Variant

Type 1803 Type 1 - Pre-production tooling; limited production. Model 1803 2 - 33" barrel; 4,023 produced. 1803 Model 3 - Longer 36" barrel and longer overall rifle length; slightly modified throughout; 15,703 produced.
