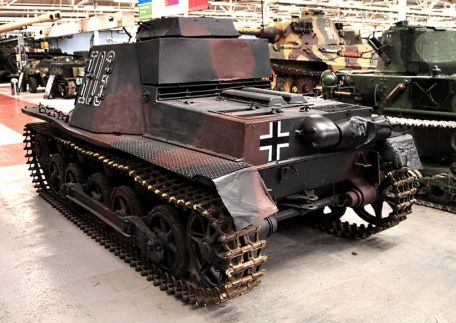

SdKfz 265 Panzerbefehlswagen

History of the SdKfz 265 Armoured Command Vehicle

Recognizing the need for their field commanders to be better informed during combat operations, the German Army has promoted a new type of tank designed for communications. Their first successful, purpose-built example was the SdKfz 265 Panzer Command Vehicle ("Armored Command Vehicle"), based on the chassis of the Panzer I Ausf 1945.

The conversion process for the new car involves removing the movable turret (and standard armament) and adding a new fixed superstructure with sloping sides in its place. Inside there is room for a three-person crew - a driver, a commander and a dedicated radio operator. A loop antenna network is placed around the superstructure to increase the range of the built-in radios (FuG2 and FuG6).

A 7.92mm MG13 ball bearing machine gun was mounted on the right side of the hull superstructure for local defense, and a pistol port was also installed for the crew. Additional internal fuel storage has been added to increase the vehicle's range. With these changes, the already cramped crew compartment has become even more cramped, and the vehicle exceeds the working weight of the original Panzer I.

General shape and propulsion function of the Panzer I ausf. The B is largely intact, although the original 60-horsepower Krupp engine was upgraded to a Maybach NL38TR 4-cylinder 100-horsepower petrol engine, which, despite the added weight, slightly improved the car's speed.

Daimler-Benz was commissioned to convert Panzer 1 into a command tank and managed a total of 190 tanks from 1935 to 1937 - just in time for training exercises before World War II. The action took place during the Polish invasion on September 1, 1939, the SdKfz 265 was the standard assault tank of the armored forces, until 1940 it was abandoned in favor of a more modern solution based on the latest German tank framework.

Since its first use, the vehicle has undergone regular upgrades such as: B. Additional armor to improve survivability, some have lost their pinball machine guns entirely to make up for the limited space in the fighting compartment. They were then used to invade the Netherlands and France, resulting in the fall of France in June 1940. From there, the tanks held service records in the Balkans and North Africa campaigns in 1941, until the lines were finally drawn and serviced from the front by early 1943.

Those who remained in regular service began serving as trainers and worked until the end of the war in Europe in May 1945.

Hungary is the only other operator of the SdKfz 265 armoured command vehicle, and the number is very limited.

The final design of the SdKfz 265 is 4.4 meters long, 2 meters wide and 1.7 meters high. The armor protection of various fairings ranges from 6mm to 13mm. A quarter-oval leaf spring system allows for off-road driving and keeps up with the rest of the mechanized power.

Range is up to 180 miles and road speeds peak at 25 mph.

Specification

Basic

Roles

Dimensions

Performance

Performance

Armor

Not available.

Changes
