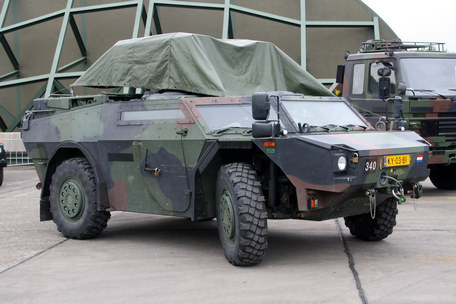

LGS Fennek (Leichter Gepanzerter Spahwagen)

History of LGS Fennek (Light Armored Reconnaissance Vehicle)

Early development began in the early 1990s as a three-country project involving France, Germany and the Netherlands. Ultimately, the comparison between the Zobel prototype and the Panhard/MaK VBL leaned in favor of the former, and France withdrew from the project. However, the Zobel was modified with DAF/Wegmann and was very different from the final prototype that won the competition in 1994.

In particular, the driver's position is further back. Eventually, the design was refined between 1995 and 2000 to form the front compartment.

LGS (stands for "Leichter Panzerter Spahwagen" or "Light Armored Reconnaissance Vehicle" is a project of the German Army to replace older vehicles in service (like Luchs), while the Royal Netherlands Army has similar specifications therefore, according to the government With the blessing of the Netherlands Special Products Aerospace joined KMW (KraussMaffei Wegmann), which initially signed a joint production contract, and later the Turkish FNSS defense system stepped in to supply the weapons modules.

In April 2000, the KMW prototype was ready, and the tests were completed in December of the following year, when the joint Dutch-German order was made. 410 for the Dutch Army and 300 for the German Army. The first deliveries started in 2003 and were extended until 2015 for the German Armed Forces.

However, in 2004 SP Aerospace went bankrupt and was replaced by the newly formed Defence Vehicle Systems, which was tasked with realizing production for the Dutch Army.

Specification

Base

Years of Service

2003

Origins

Germany

Crew

3

Production

632

Manufacturer

Krauss-Maffei Wegmann - Germany / Dutch Defense Vehicle Systems - Netherlands

Operator

Germany;Netherlands

ROLLERS

Armored Vehicles

Designed, usually lightweight, to provide on-road/off-road capability for reconnaissance or general security roles.

Recon

Can perform reconnaissance/reconnaissance missions to assess threat levels, enemy strength, etc. - usually due to lightweight construction.

Dimensions and Weight

Length

18.7 feet

5.71m

width

8. 2 feet

2.5m

Height

5.9 feet

1.79m

Weight

22,046 lbs

10,000 kg

Tonnage

11. 0 tons

Power and Performance

Engine:

1 x 240 hp Deutz diesel engine.

Speed

71.5 km/h

(115.0 km/h)

Area

534. 4 miles

(860.0 km)

Weapons

1 x 40mm Hecker & Koch HK GMG Automatic Grenade Launcher. 1 x 7.62mm MG3 general purpose machine gun or 1 x 12.7mm Browning M2HB heavy machine gun.

AMMOTION

Not available.

VARIANTS

Fennek - Base series name Fennek REC - Base reconnaissance model Fennek MRAT (Medium Range Anti-Tank) - Anti-tank missile carrier. Fennek GP - General Vehicle Fennek CEV - Combat Engineering Vehicle Fennek JFST (Joint Fire Support Team) - Fire Support Vehicle.
