Smith & Wesson Model 76

History

Entering the Vietnam War (1955-1975), U.S. Navy SEALs (sea, air and land) special forces used a variety of weapons in various covert operations in the region.

When attacking enemies from the rear, squads use silenced pistols, shotguns, experimental assault weapons, and various types of submachine guns. One weapon that gains traction is the Swedish-derived Carol Gustaf m/45 series submachine gun, which offers compactness, proven human-stop bullets, and reliability in otherwise unforgiving combat environments.

The

m/45 was born during World War II (1939-1945) when Sweden managed to remain neutral throughout the conflict despite Norway's incursion to the west and Finland to the east. Although they remain neutral, several important weapons are still being researched, including tanks and various small arms.

Introduced in 1945, the m/45 submachine gun proved to be a highly traditional submachine gun design with simple, straight recoil, while holding the widely used German 9x19mm Parabellum pistol cartridge, ranging from 36 detachable rounds Box fired. About 300,000 examples of this type were built from 1945 to 1964, with additional stock coming from Egypt (like "Port Said/Aqaba") and local production in Indonesia.

In 1966, however, Sweden stopped arms exports to the United States in protest of the Vietnam War. This made it impossible for the SEALs to reliably supply the new m/45 and all necessary replacement parts, prompting Smith & Wesson, a well-known US arms manufacturer, to attempt to locally replicate the m/45-based model and sell it to the US Navy. This work resulted in the local "M76" ("Type 76"), which was launched in 1967.

However, as the war progressed, the U.S. Navy showed little interest in acquiring the weapon, making the M76 only a footnote in the history of American guns. A limited number of units produced between 1967 and 1975 eventually formed part of the U.S. Navy inventory and were procured by some U.S. law enforcement agencies and some civilian owners.

Clones of this gun are sometimes sold in limited quantities as "M760" (licensed by MK Arms) and "M76A1" (licensed by gun manufacturer Global Arms).

Like the Swedish design, the M76 is loaded with a 9x19mm Parabellum pistol cartridge and uses basic recoil. It provides a rate of fire of 720 rounds per minute. Can be fed from detachable magazines containing 14, 24 or 36 rounds. Aiming is carried out by means of front and rear iron devices.

The gun weighs 7.25 pounds unloaded and 8.75 pounds loaded. It has an overall length of 30.5 inches, but with its swivel, collapsible stock, it folds down to a more manageable 22.5 inches. Its barrel is only 8 inches long.

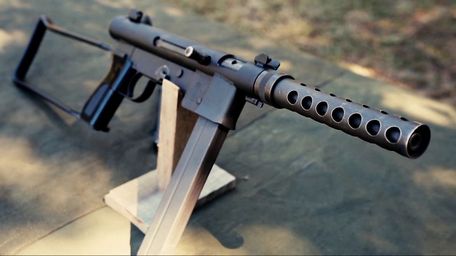

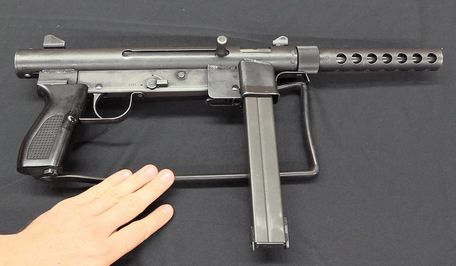

Its receiver is tubular, with a threaded perforated heat shield above the barrel. The loading handle is on the right, as is the case, which is above the magazine. The trigger is attached to the rear of the pistol grip and has a large ring guard that fits gloved hands. The rear iron sight is placed above the grip area, while the front sight is on the receiver in front of the ejection port.

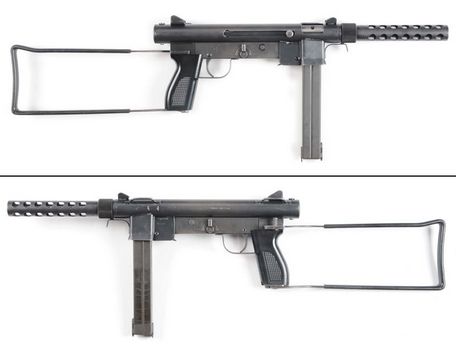

The shoulder rest is a thin wired frame design with hinges folded over the left side of the receiver. The magazine is a straight, detachable box that plugs into the waiting shaft and doubles as a vertical front handle.
